Travel Radios from Panasonic

Panasonic's first multiband travel radio appeared in 1980, the RF-085 competed with Sony's ICF-7600, had three barely spread shortwave bands from 2.25 - 18.6 MHz and it's price was only half of the Sony set. In Europe, the RF-788L was available in a comparable design with two shortwave and longwave ranges. With ten spread shortwave bands in addition to FM & MW, the RF-B50 was able to catch up with Sony's competitor and excelled by covering tropical bands up to 13 m broadcast band. The RF-9L in miniature format had 6 spread bands from 49-16 m. The unit was soon followed by the RF-B10 with similar specifications, the RF-B20 was an analogue double conversion set, and the RF-B40DL was a small PLL double conversion receiver with direct frequency entry and full microprocessor control. The RF-B60L with slightly larger dimension had finer tuning steps, a higher number of station memories and additional clock functions. With the RF-B65 as the top set of the series, a BFO for SSB reception and fine tuning were added to the already successful radio.

Whether this or the Sony ICF-7600D, which was in the same price range, should be preferred as a mini travel receiver, remained a subject of discussion for some time. In the meantime, Panasonic has withdrawn from the world receiver business; some of the devices are still available second-hand.

Travel portables from Panasonic

RF-0851980Single ConversionFM, MW, 3 x SW (2.25 - 18.6 MHz)analogue dial
RF-788L1979Single ConversionFM, LW, MW, 2 x SW (2.25 - 18.6 MHz)analogue dial

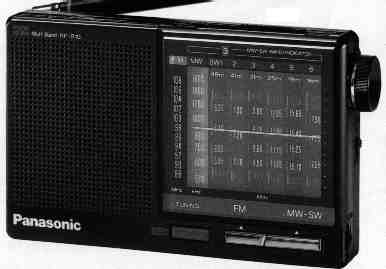

RF-9L Single ConversionFM, LW, MW, 6 x SW (5.9-18 MHz)analogue dial
RF-B50L1984Single ConversionFM, LW, MW, 7 x SW (49 - 13 mb)analogue dial, two bandwidths
RF-B50 (intl.)1984Single ConversionFM, MW, SW1 (120 - 60 mb), 7 x SW (49 - 13 mb)analogue dial
RF-B101986Single ConversionFM, MW, 6 x SW (49 - 16 mb)analogue dial
RF-B20DL1986Double ConversionFM, LW, MW, 6 x SW (49 - 16 mb)analogue dial
RF-B40DL1987Double ConversionFM, LW, MW, SW (1.6 - 30 MHz)Digital display 5 kHz steps, 27 memories
RF-B60DL1986Double ConversionFM, LW, MW, SW (1.6 - 30 MHz)Digital display 1 kHz steps, 36 memories, clock/timer
RF-B451991Double ConversionFM, LW, MW, SW (1,6 - 30 MHz)Digital display 5 kHz steps, SSB, Fine Tuning, 18 memories
RF-B65DL1989Double ConversionFM, LW, MW, SW (1.6 - 30 MHzDigital display 1 kHz steps, SSB, Fine Tuning, 36 memories, clock/timer
RF-B551999Double ConversionFM, LW, MW, SW (1.7 - 30 MHz)Digital display 5 kHz steps, fine tuning, 18 memories VHF and SW, 9 memories LW and MW
